PSS-5002
1 PC Stainless Steel Ball Valve (S/E) SS 316
PSS-5002
1 PC Stainless Steel Ball Valve (S/E) SS 316
Salient Features
- Premium Gland Packing System for Reduced Friction
and Smooth Stem Movement. - Design Standard : As per BS5351/ IS 9890-1981
- End connection : Screwed end BSP/NPT
- Testing Standard : As per BS5146, ISO 5208/ API 598
Technical Pressure :
|
Class |
HYDRO |
|
PNEUMATIC |
|
BODY |
SEAT |
AIR |
|
|
150# |
32 KG/CM² |
21 KG/CM² |
7 KG/CM² |

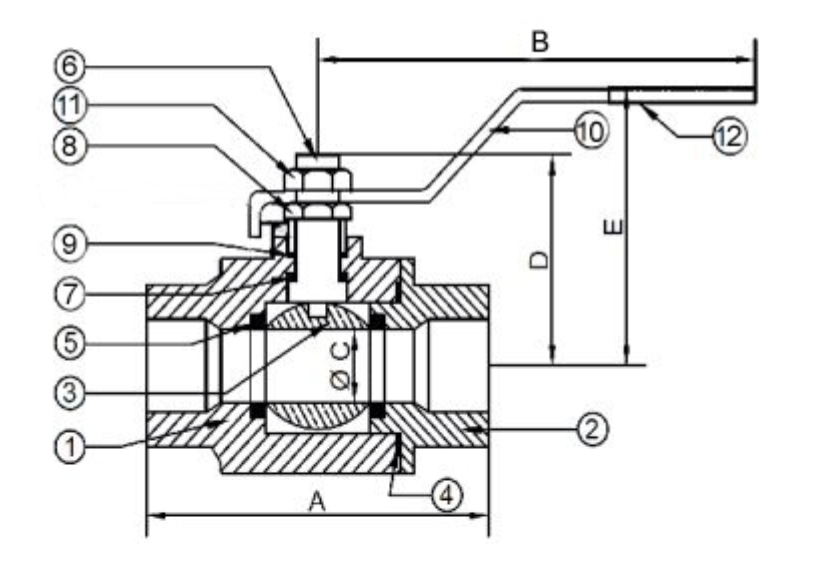

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | SS316 | - | 1 |
| 2 | Body Nut | SS316 | - | 1 |
| 3 | Ball | SS316 | - | 1 |
| 4 | Body Gasket | PTFE | - | 1 |
| 5 | Ball Seat | PTFE | - | 2 |
| 6 | Stem | SS316 | - | 1 |
| 7 | Stem Seat | PTFE | - | 1 |
| 8 | Gland Nut | SS202/304 | - | 1 |
| 9 | Gland Packing | PTFE | - | 1 |
| 10 | Handle | SS 202/304 | - | 1 |
| 11 | Handle Nut | SS202/304 | - | 1 |
| 12 | Sleeve | PVC | - | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| DN | Size (Inch) | A | B | ØC | D | E |
| 8 | 1/4" | 50 | 87 | 9 | 36 | 45 |
| 10 | 3/8" | 50 | 87 | 10 | 36 | 45 |
| 15 | 1/2" | 57 | 100 | 14 | 43 | 52 |
| 20 | 3/4" | 67 | 100 | 19 | 46 | 55 |
| 25 | 1" | 76 | 120 | 25 | 58 | 72 |
| 32 | 1 1/4" | 85 | 120 | 32 | 65 | 78 |
| 40 | 1 1/2" | 97 | 155 | 38 | 74 | 92 |
| 50 | 2" | 113 | 155 | 50 | 88 | 106 |
| 65 | 2 1/2" | 139 | 235 | 63 | 110 | 125 |
| 80 | 3" | 155 | 235 | 75 | 125 | 140 |
| 100 | 4" | 180 | 235 | 100 | 140 | 150 |
