Salient Features
- Design Standard IS 13095
- Wafer Type
- Pneumatic Actuator Operated
- Stainless Steel Disc Which Is Accurately Guided Between The Two Steams
- Integrally Moulded Rubber Lining
- Compliant with B.M.S (Building Management System)
- Can be Provided With Extended Wire For Ease Of Installation
- IP 67 Protection Available For Outdoor Application
- Input Voltage - 24/230 V Power Supply
- Integrally Moulded Rubber Lining
- Two Piece Steam Design
- Compatible To Sandwich Between Flanges As Per BS 10 Table D,E,F ASA Class 150
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 2.4 MPa
- Seat: 1.76 MPa
- Maximum Working Pressure: 1.6 MPa
- Maximum Working Temperature: 90°C
| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Pneumatic Actuator |
- |
- |
1 |
| 2 |
Actuator Base |
Carbon Steel |
- |
1 |
| 3 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 4 |
Disc |
Stainless Steel |
IS 3444 Gr.1 / ASTM A351 Gr.CF8 |
1 |
| 5 |
Upper Stem |
Stainless Steel |
IS 6603 Gr.12 Cr 12 |
1 |
| 6 |
'O' Ring |
Stainless Steel |
IS-5192-1 |
1 |
| 7 |
Bush |
PTFE |
BS EN 12086-1 |
1 |
| 8 |
L-Key Screw |
Carbon Steel |
- |
1 |
| 9 |
Studs For Actuator |
Carbon Steel |
- |
1 |
| 10 |
Locking Washer |
Spring Steel |
- |
1 |
| 11 |
Body Lining |
EPDM/ Nitrile |
IS 5192-1 |
1 |
| 12 |
Name Plate |
Aluminium |
|
1 |
| 13 |
L-Key Bolts & Nuts |
Carbon Steel |
- |
4 Each |
| 14 |
Nuts |
Carbon Steel |
- |
4 |
| 15 |
Spring Washer |
Spring Steel |
- |
4 |
|

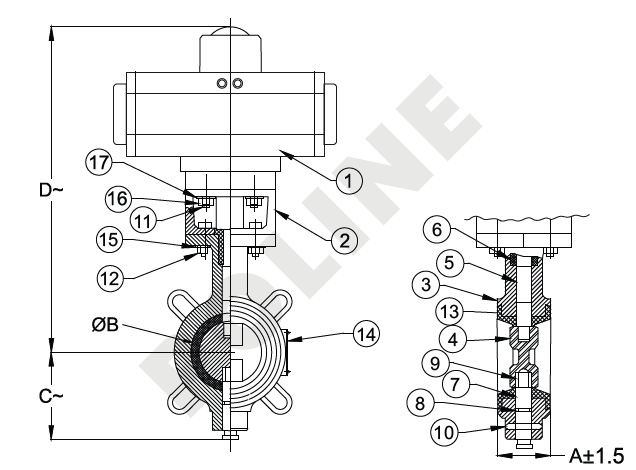

SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
