| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Body Lining Integrally Moulded And Bonded To Body
- One Piece Body Construction
- Working Pressure: 25 Bar
- Valves Are Bi-Directional
- Valve Shell Have Moulded Raised Face
- Tight Shut Off Valve
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 3.75 MPa
- Seat: 2.75 MPa
- Maximum Working Pressure: 2.5 MPa
- Maximum Working Temperature: 90°C

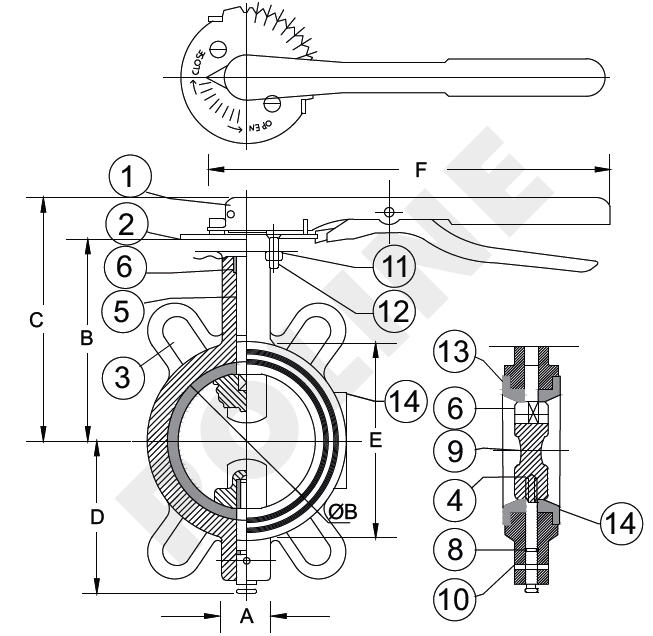

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Flow Control Lever |
Carbon Steel (Powder Coated) |
- |
1 |
| 2 |
Notch Plate |
Carbon Steel (Powder Coated) |
- |
1 |
| 3 |
Body |
Cast Iron |
IS 210 FG 200 |
1 |
| 4 |
Disc |
S.G. Iron (Epoxy Coated) |
IS 1865 Gr. 400/15 |
1 |
| 5 |
Upper Stem |
Stainless Steel |
IS 6603 Gr.12 Cr 12 |
1 |
| 6 |
Packing Bush |
PTFE |
- |
1 |
| 7 |
Lower Stem |
Stainless Steel |
IS 6603 Gr.12 Cr 12 |
1 |
| 8 |
‘O’ Ring |
Nitrile Rubber |
IS 5192-1 |
1 |
| 9 |
Bush |
PTFE |
BS EN 12086-1 |
1 |
| 10 |
L-Key Screw |
Carbon Steel |
- |
1 |
| 11 |
C-Sunk Screw & Nuts |
Carbon Steel |
- |
2 |
| 12 |
Locking Washer |
Spring Steel |
- |
2 |
| 13 |
Body Lining |
EPDM/ Nitrile |
IS 5192-1 |
1 |
| 14 |
Name Plate |
Aluminium |
- |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
| 40 |
|
|
|
|
|
| 50 |
178+2 |
16+2 |
165(+1 5/-1.0) |
225 |
365 |
| 65 |
190+2 |
16+2 |
185(+1 5/-1.0) |
225 |
380 |
| 80 |
203+2 |
21 |
200+4.5 |
225 |
425 |
| 100 |
229+2 |
22+3 |
220+4.5 |
320 |
470 |
| 125 |
254+2 |
22.5+3 |
250+4.5 |
320 |
485 |
| 150 |
267+2 |
23+3 |
285(+5.5/2.5) |
320 |
595 |
| 200 |
292+2 |
24.5+3 |
340(+5.5/2.5) |
360 |
725 |
| 250 |
330+2 |
26+3 |
3985(+5.5/2.5) |
400 |
835 |
| 300 |
356+2 |
27.5+3 |
445(+5.5/-2.5) |
400 |
910 |
| 350 |
381+2 |
29+3 |
505(+6.5/-3.0) |
500 |
1020 |
| 400 |
406+2 |
30+3 |
565(+6.5/-3.0) |
640 |
1110 |
| 450 |
432+2 |
31.5+3 |
615(+6.5/-3.0) |
720 |
1200 |
| 500 |
|
|
|
|
|
| 600 |
508+2 |
36+3 |
720(+6.5/-3.0) |
720 |
1500 |
The information provided here serves as guidelines only and is subject to possible modification.
