| SUITBLE FOR |
| GASES |
AIR |
STEAM |
OIL |
WATER |
|
|
|
|
|
|
Salient Features
- Adheres To Api 602 And Bs En Iso 15761 (Bs 5352) Design Standards
- The Body And Cover Are Phosphated For Enhanced Rust Protection
- Features A Bolted Cover
- Female Ends Are Threaded To Bspt / Npt Or Socket Welded According To Ansi B16.11
Technical Data
- Test Pressure (Hydrostatic):
- Shell: 20.7 Mpa (3000 Psig)
- Seat: 15.2mpa (2200 Psig)
- Maximum Working Temperature: 425°C

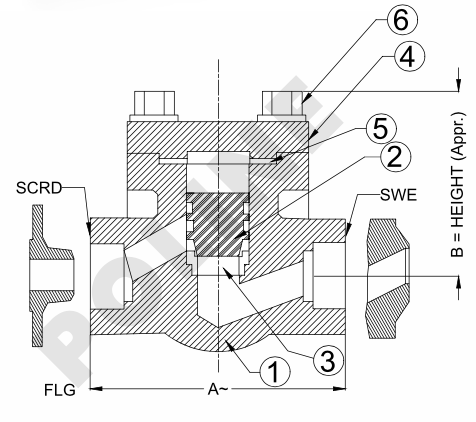

| MATERIAL LIST |
| P.NO |
Name Of Part |
Material of Constuction |
Specifications |
Qty. |
| 1 |
Body |
Forged Carbon Steel |
Astm A 105 |
1 |
| 2 |
Body Seat Ring |
Stainless Steel |
Astm A 276 Type 410 / Astm A182 Gr. F6a |
1 |
| 3 |
Disc |
Stainless Steel |
Astm A 276 Type 410 |
1 |
| 4 |
Gasket |
Spiral Wound (Type 316) Graphite Filled |
- |
1 |
| 5 |
Cover |
Forged Carbon Steel |
Astm A 105 |
1 |
| 6 |
Stud |
Alloy Steel |
Astm A 193 Gr. B7 |
4 |
| 7 |
Nut |
Alloy Steel |
Astm A 194 Gr. 2h |
4 |
| 8 |
Identification Plate |
Aluminium |
- |
1 |
|
SIZE / DIMENSIONS
|
| Size(mm) |
A+1.5 |
B |
OC |
OD+5.0 |
E(MAX.) |
The information provided here serves as guidelines only and is subject to possible modification.
