Cast Iron Y-Type Strainer (Screwed)
Cast Iron Y-Type Strainer (Screwed)
Product Overview
The Poline Cast Iron Y Type Strainer – Screwed BSPT Ends is designed to protect pumps, valves, meters, traps, and pipeline equipment by filtering debris, rust particles, and solid contaminants from flowing media. Built with a durable cast iron body and precision internal screening system, it ensures dependable operation in industrial piping networks.
This model features female screwed BSPT threaded ends for easy installation in threaded piping systems. The SS304 perforated screen offers corrosion resistance, long service life, and effective filtration. Smooth internal contours help minimize pressure drop while the large screening area improves straining efficiency.
Suitable for steam, water, oil, and utility applications.
Key Features
- Strong cast iron body construction
- Female screwed BSPT ends for threaded piping systems
- SS304 perforated sheet screen
- Large screening area for better filtration performance
- Smooth internal contours to reduce pressure drop
- Easy maintenance and screen cleaning
- Suitable for steam, water, oil, and utility media
- Reliable industrial service life
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | Y Type Strainer |
| Body Material | Cast Iron |
| End Connection | Screwed Female BSPT |
| Screen Material | SS304 |
| Testing Standard | API 598 |
| Shell Test Pressure | 21.10 kg/cm²g (300 psig) |
| Working Pressure (Steam) | 10.55 kg/cm²g (150 psig) |
| Working Temperature | Up to 220°C |
Applications
The Poline Cast Iron Y Strainer is widely used in:
- Steam pipelines
- Water systems
- Oil lines
- Boiler houses
- Pump suction lines
- HVAC utility lines
- Process plants
- Industrial maintenance systems
Why Choose Poline Y Strainers?
Poline Valves manufactures dependable flow control and filtration products designed for long life and low maintenance. Our Y strainers help protect downstream equipment and improve pipeline reliability.
Frequently Asked Questions
1. What is a Y type strainer used for?
A Y strainer removes dirt, rust, scale, and particles from pipeline media to protect valves, pumps, and equipment.
2. Can this strainer be used for steam?
Yes, it is suitable for steam service within specified pressure and temperature limits.
3. What is the screen material?
The internal screen is made of SS304 stainless steel.
4. What are BSPT ends?
BSPT stands for British Standard Pipe Taper threaded connection.
5. What is the maximum working temperature?
The strainer is suitable for temperatures up to 220°C.
Request a Quote
For pricing, OEM supply, dealership enquiries, or bulk orders for Cast Iron Y Type Strainer – Screwed BSPT Ends, contact Poline Valves today.

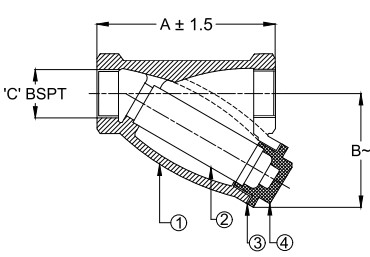

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Iron | IS 210 FG 200 | 1 |
| 2 | Mesh Type | Stainless Steel | IS 6603 | 1 |
| 3 | Gasket | Steam Joining Sheet | IS 2712 Gr. W/3 | 1 |
| 4 | Cover | Cast Iron | IS 210 FG200 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A ± | Ø B | C~ |
| 15 | 99 | 71 | 1/2" |
| 20 | 114 | 85 | 3/4" |
| 25 | 120 | 95 | 1" |
| 32 | 139 | 110 | 1 1/4" |
| 40 | 144 | 1116 | 1 1/2" |
| 50 | 157 | 140 | 2" |
| 65 | 208 | 155 | 2 1/2" |
