PB-1016
Forged Brass Pressure Reducing Valve
PB-1016
Forged Brass Pressure Reducing Valve
Salient Features
- Most Ideal for sensitive & a consistent fluid regulation.
- Piston-operated , hence more reliable than coventional diaphragm type P.R.V.
- Rugged body,compact-sized, easy to install,reduiring low maintenance & virtually noiseless.
- Most of the critical working components have a distinct edge of being hot brass forged.
- Facility provided to install a pressure Gauge of 14" B.S.P size to measure the critically relevant outlet pressure.
- Designed to suit every application requiring accurate pressure ratings.
- No External source of energy required.
- All 'O' rings are od superior food grade material , hence ensuring absolute zero health hazard.
Test Pressure(Hydrostatic):
- Shell : 20 Bar
- Seat : 15 Bar
- Maximum Working Temperature: +225°

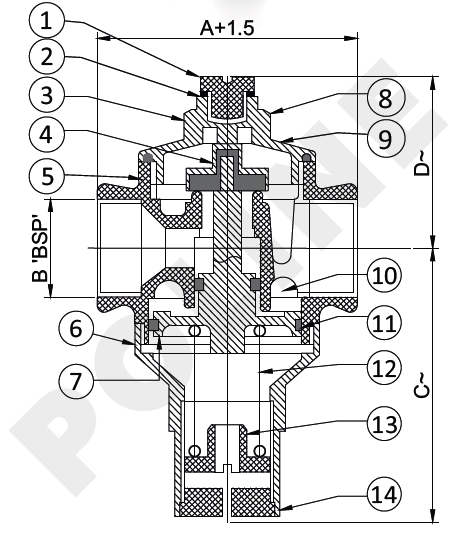

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Plug | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 2 | 'O' Ring | Rubber | Nitrile | 1 |
| 3 | Bonnet | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 4 | Disc Holder | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 5 | Body | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 6 | Chamber | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 7 | Piston | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 8 | Disc | Rubber | Nitrile | 1 |
| 9 | 'O' Ring | Rubber | Nitrile | 1 |
| 10 | 'O' Ring | Rubber | Nitrile | 1 |
| 11 | 'O' Ring | Rubber | Nitrile | 1 |
| 12 | Spring | S.S | Spring Steel Hard CP | 1 |
| 13 | Adjusting | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| 14 | Cap | Brass / Bronze | IS 318 LTB- 2/IS:6912 | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
