Name: PN16 Cast Iron Sluice Valve - Non Rising Stem Flanged
Brand: Poline Valves
SKU: PCI-2013
Availability: InStock

PCI-2015

Cast Iron Sluice Valve PN1.6 (F/E) Non Rising Stem 780

PCI-2015

Cast Iron Sluice Valve PN1.6 (F/E) Non Rising Stem 780

Product Overview

The Poline PN16 Cast Iron Sluice Valve – Non Rising Stem Flanged is designed for dependable isolation control in water distribution, utility, irrigation, and industrial pipeline systems. Manufactured according to IS 14846 PN16 specifications, this valve offers durable construction, smooth operation, and long service life.

It features a bolted bonnet, internal screw mechanism, and non-rising stem design, making it ideal for installations with limited vertical space. The valve is manually operated through a robust hand wheel for easy opening and closing.

With flanged ends conforming to IS 1538, the valve ensures secure installation and compatibility with standard pipeline systems.

Key Features

Designed as per IS 14846 PN16
Strong cast iron body construction
Non rising stem for compact installations
Bolted bonnet design for maintenance access
Internal screw mechanism
Smooth hand wheel operated opening and closing
Flanged ends to IS 1538
Reliable shut-off performance
Long service life with low maintenance

Technical Specifications

Parameter	Details
Product Type	Sluice Valve
Body Material	Cast Iron
Pressure Rating	PN16
Design Standard	IS 14846
End Connection	Flanged
Flange Standard	IS 1538
Stem Type	Non Rising Stem
Operation	Hand Wheel
Shell Test Pressure	2.4 MPa
Seat Test Pressure	1.6 MPa
Working Temperature	Up to 45°C

Applications

The Poline Cast Iron Sluice Valve is widely used in:

Water supply networks
Municipal pipelines
Irrigation systems
Utility services
Pumping stations
Treatment plants
Commercial infrastructure
Industrial water lines

Why Choose Poline Sluice Valves?

Poline Valves manufactures durable isolation valves designed for dependable service and long life. Our sluice valves provide reliable shut-off, easy operation, and robust construction for infrastructure projects.

Frequently Asked Questions

1. What is a sluice valve used for?

A sluice valve is used for full open or full close isolation in water and utility pipelines.

2. What is a non rising stem valve?

A non rising stem valve keeps the stem inside the body while opening or closing, saving vertical installation space.

3. Is this valve suitable for water supply lines?

Yes, it is widely used in water distribution and municipal systems.

4. What is PN16 rating?

PN16 indicates a nominal pressure rating up to 16 bar.

5. What standard is this valve manufactured to?

This valve is designed according to IS 14846.

Request a Quote

For pricing, OEM supply, dealership enquiries, or bulk orders for PN16 Cast Iron Sluice Valve – Non Rising Stem Flanged, contact Poline Valves today.

MATERIAL LIST
Part No	Part Name	Material	Specification	Qty
1	Body	Cast Iron	IS 210 Gr. FG 200	1
2	Seat Ring	Bronze	IS 318 Gr. LTB 2	4
3	Hollow Wedge	Cast Iron	IS 210 Gr. FG 200	1
4	Stem Bush	Bronze	IS 318 Gr. LTB 2	1
5	Gasket	Rubber	IS 638 Type B	1
6	Bonnet	Cast Iron	IS 210 Gr. FG 200	1
7	Stem	Stainless Steel	IS 6603 Gr. 12 Cr. 12	1
8	Stuffing Box	Cast Iron	IS 210 Gr. FG 200	1
9	Gland Packing	Hemp & Jute	IS 5414	-
10	Gland Flange	Cast Iron	IS 210 Gr. FG 200	1
11	Hand wheel	Cast Iron	IS 210 Gr. FG 200	1
12	Washer	Carbon Steel	-	1
13	Bolt	Carbon Steel	IS 1363	1
14	Bolt & Nut	Carbon Steel	IS 1363	As Reqd.
15	Stud / Bolt	Carbon Steel	IS 1363	2
16	Nut	Carbon Steel	IS 1363	As Reqd.

SUITABLE FOR
GASES	AIR	STEAM	OIL	WATER

SIZE DESCRIPTION

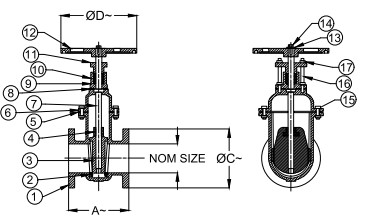

Size (mm)	A	B	ØC	ØD ±5	E(Max)
50	215	16	165	280	365
65	230	16	185	280	380
80	230	21	200	280	425
100	255	22	220	360	470
125	266	22.5	250	360	485
150	280	23	285	360	595
200	318	24.5	340	450	725
250	356	26	395	640	835
300	380	27.5	445	640	910
400	690	29	505	640	1030
450	750	30	565	730	1110
500	850	32	615	800	1210
550	880	33	670	800	1340
600	1000	36	780	800	1500
