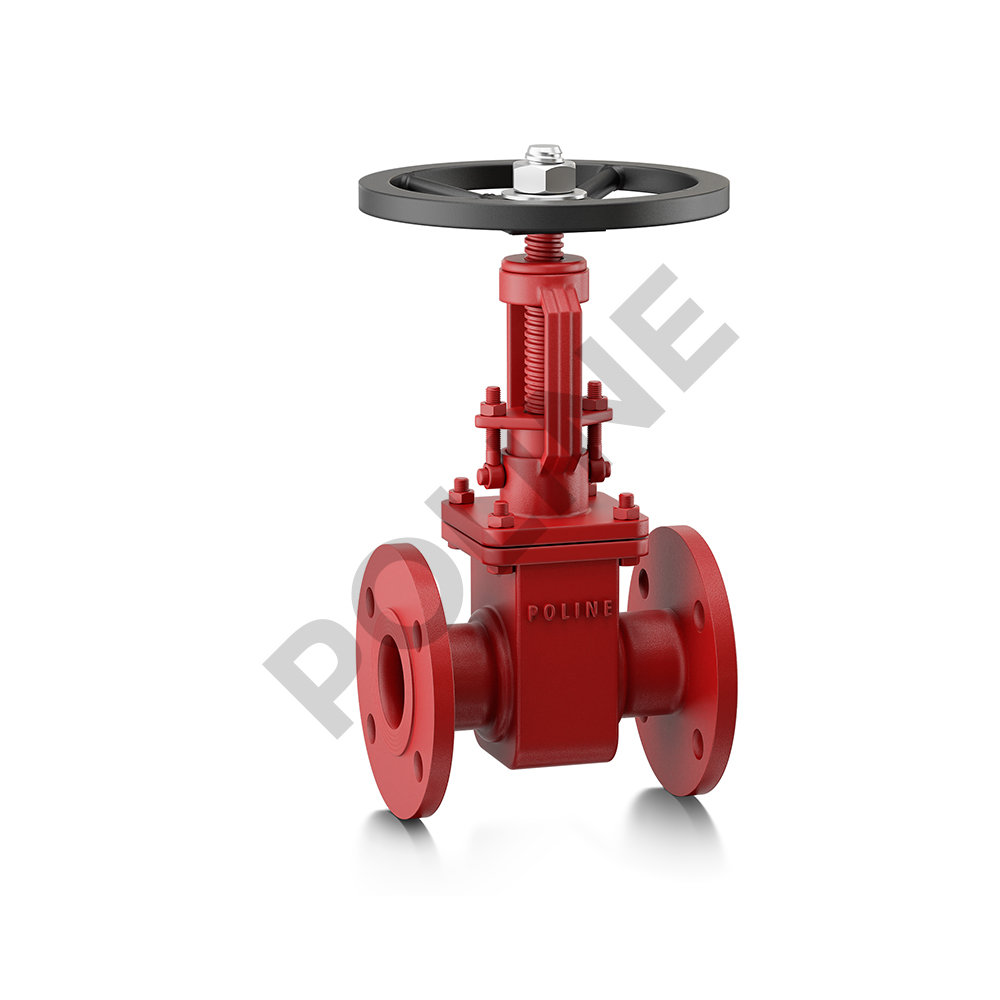

PCS-3006
Cast Steel Gate Valve
PCS-3006
Cast Steel Gate Valve
Salient Features
- Designed to meet BS EN ISO 10434 and API 600 Standards.
- Constructed with a Bolted Bonnet, Outside Screw, Yoke Type, and Rising Stem.
- Features Renewable Working Parts Made from 13% Chromium Stainless Steel (S.S 410).
- Operated by a handwheel.
- Flanged ends are Compliant with ASME B16.5 Class-150.
Technical Data
- Shell: 3.1 MPa (31 kg/cm²g)
- Seat: 2.1 MPa (21 kg/cm²g)
- Seat (Steam): 1.055 MPa (10.55 kg/cm²g)
- Maximum Working Temperature: 425°C

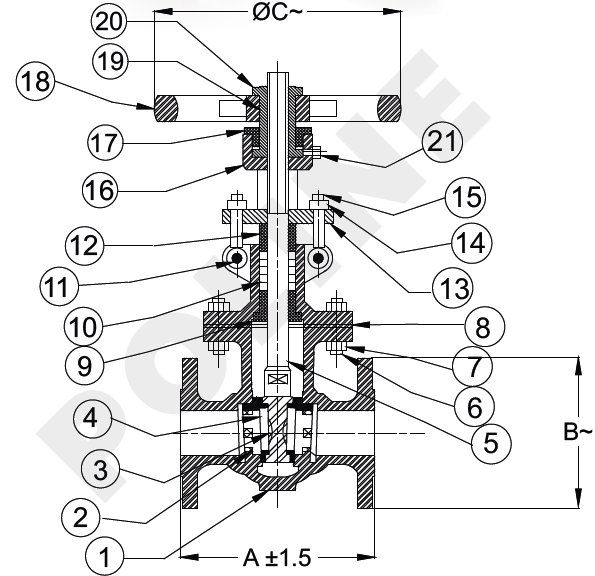

| MATERIAL LIST | ||||
|---|---|---|---|---|
| Part No | Part Name | Material | Specification | Qty |
| 1 | Body | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 2 | Body Seat Ring | Stainless Steel | ASTM A 276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 3 | Wedge | Cast Steel | ASTM A 216 Gr. WCB | 1 |
| 4 | Wedge Facing Ring | Stainless Steel | ASTM A 276 Type 410 / ASTM A 182 Gr. F6a | 2 |
| 5 | Stem | Stainless Steel | ASTM A 276 Type 410 / ASTM A 182 Gr. F6a | 1 |
| 6 | Studs | Alloy Steel | ASTM A 193 Gr. B7 | As Reqd. |
| 7 | Nuts | H.T. Steel | ASTM A 194 Gr. 2H | As Reqd. |
| 8 | Gasket | Steam Jointing Sheet | IS 2712 Gr. W/3 | 1 |
| 9 | Back Seat Bush | Aluminium Bronze | BS EN 1982 Gr. AB – 1 | 1 |
| 10 | Gland Packing | Braided Graphite | IS 4687 | - |
| 11 | Pin For Eye Bolt | Stainless Steel | ASTM A 276 Type 410 | 2 |
| 12 | Gland | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 13 | Gland Flange | Carbon Steel | - | 1 |
| 14 | Nuts | H.T Steel | ASTM A 194 Gr. 2H | 2 |
| 15 | Eye Bolts | Stainless Steel | ASTM A 276 Type 410 | 2 |
| 16 | Bonnet | Carbon Steel | ASTM A 216 Gr. WCB | 1 |
| 17 | Stem Nut | Stainless Steel | ASTM A 276 Type 410 | 1 |
| 18 | Hand wheel | Hand wheel | ASTM A 439 D2 | 1 |
| 19 | Yoke Sleeve | S.G Iron | IS 1865 Gr. 400 / 15 | 1 |
| 20 | Hand wheel Nut | Carbon Steel | - | 1 |
| 21 | Grease Nipple | Carbon Steel | - | 1 |
| SUITABLE FOR | ||||
|---|---|---|---|---|
| GASES | AIR | STEAM | OIL | WATER |
| SIZE DESCRIPTION |
|---|
| Size (mm) | A ±1.5 | B~ | C~ |
| 25 | 127 | 108 | 123 |
| 40 | 165 | 127 | 152 |
| 50 | 178 | 152 | 203 |
| 65 | 190 | 178 | 203 |
| 80 | 203 | 190 | 254 |
| 100 | 229 | 229 | 305 |
| 125 | 254 | 254 | 305 |
| 150 | 267 | 279 | 356 |
| 200 | 292 | 343 | 356 |
| 250 | 330 | 406 | 406 |
| 300 | 355 | 483 | 457 |
| 350 | 381 | 534 | 508 |
| 400 | 406 | 597 | 508 |
